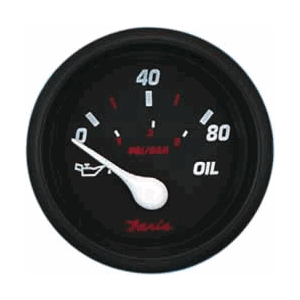

Faria Professional Red 2" Oil Pressure Gauge [14602]
Professional Red 2" Oil Pressure Gauge (0 to 80 PSI)
The Faria Beede Professional Red features perimeter-lighted black dial with stylish Red and White graphics, Black aluminum bezel, tear- drop White pointer, and flat glass lens.
A pressure gauge operates by sending a low amperage current through the gauge's meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...
As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the change in pressure.
2" - Hole size: 2.0625" (53mm)
Specifications:
- Flat Scratch Resistant Lens
- Black Aluminum Bezel
- LED Illuminating around the Perimeter of the Dial
- Tear Drop White Pointer
Factory P/N GP7063
*Sold as an Individual
**Gauge Cover not Included
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.Specifications:
- Gauge Type: Oil Pressure
- Voltage - Input Range (Volts): 12/24 V
- Gauge Size: 2"
- Box Set: No
- Series: Pro Red
- Box Dimensions: 4"H x 4"W x 5"L WT: 0.3 lbs
- UPC: 759266146020
